processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 0.5mm 1mm 1.5mm 2mm highly

Description

When it comes to processors, it's no secret that keeping them cool is crucial to maximizing performance and extending the lifespan of your hardware. Whether you're a gamer or a designer, a high-quality thermal pad like Volsun's 3M 3KS or 8WMK can make all the difference.



So, what exactly is a thermal pad? Essentially, it's a thin piece of material that's placed between the processor and its heatsink. Unlike thermal paste, which is a liquid solution, thermal pads are solid and have a more consistent thickness than paste, making them easier to handle and apply.



Volsun's 3M 3KS thermal pad ensures exceptional thermal conductivity through its use of a specialized silicone compound. This allows for efficient heat transfer from the processor to the heatsink, resulting in lower temperatures and improved performance. With a thermal conductivity rating of 3.5 W/mK, you can trust that your processor will stay cool even under heavy loads.



If you need a bit more cooling power, Volsun's 8WMK thermal pad is the ideal choice. With a thermal conductivity rating of 8 W/mK, it offers even better heat transfer than the 3M 3KS. This makes it a great option for high-performance processors or for those who wish to overclock their CPU.



Both the 3M 3KS and 8WMK thermal pads come in a convenient size of 60 x 90 mm, allowing for easy installation on most processors. Additionally, Volsun offers thermal pads in a range of thicknesses, including 0.5mm, 1mm, 1.5mm, and 2mm. This allows for customization based on your specific hardware and cooling needs.



For those who require a larger pad, Volsun also offers a 100 x 100 mm thermal pad in all four thicknesses. This is a great option for those with larger processors or who wish to cover more surface area for improved heat transfer


product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-16
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-17
Product Overview

RoHS Compliance Flame Retardant Organic Silicone Rubber Thermal Conductive Pad

Description
VS-GP1501 silicone thermal pads achieve low interfacial thermal resistance at relatively low pressures, with excellent thermal conductivity, thermal stability, flexibility and resilience. Also, it is safe and reliable to use. Applied between the power device and the cooling aluminum sheet or the machine shell, the air can be effectively excluded to achieve good thermal conductivity and filling effect

Features
*  Continuous operating temperature:-40℃~+200℃
*   High thermal conductivity, low thermal resistance
*  Excellent surface wettability and resilience
*  Excellent flame retardant
*  Multiple thickness selection, wide application range
*   Environmental protection standard: RoHS, REACH
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-18
PRODUCT SPECIFICATIONS
Item
Typical Data
Test Method
Standard color
Grey
Visual
Density (g/cm3)
1.9
ASTM D792
Thickness (mm)
0.5~5.0
ASTM D374
Hardness (Shore OO)
25~70
GB/T 531.1-2008
Tensile Strength(KPa)
≥80
GB/T 528-2009
Elongation at break (%)
≥50
GB/T 528-2009
Thermal conductivity (W/m·k)
1.5±0.2
ASTM D5470
Flame Retardancy Rating
V-0
UL94
Breakdown Voltage(kV/mm)
(kV/mm)
ASTM D149
Volume resistivity
≥1.0×10 14 Ω·cm
ASTM D257


Instructions
*  Clean the surface of the substrate to be installed before use
*  Select suitable products based on the dimensions of the installation position

Precautions
*   The environment should be free of large debris or other pollutants to avoid affecting the installation effect and protective performance of the materials
* The specifications of the product should be similar to the dimensions of the installation position, and the deviation should not be too large

Storage conditions Shelf life
*  Storage Temperature: 0℃~40℃
*  Relative humidity: RH< 80%
*   Shelf life: 12 months from the production date

Detail Show
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-19

Applications
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-20

product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-21

product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-22
GPU/CPU Chip
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-23
New Energy Vehicle Battery Packs
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-24
Heat Dissipation Module
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-25
Company Show
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-26
Suzhou Volsun Electronics Technology Co., Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 18 years
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-known enterprises in communication, Automobile, Power industry etc
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-27
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-28
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-29
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-30
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-31
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-32
Certifications
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-33
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-34

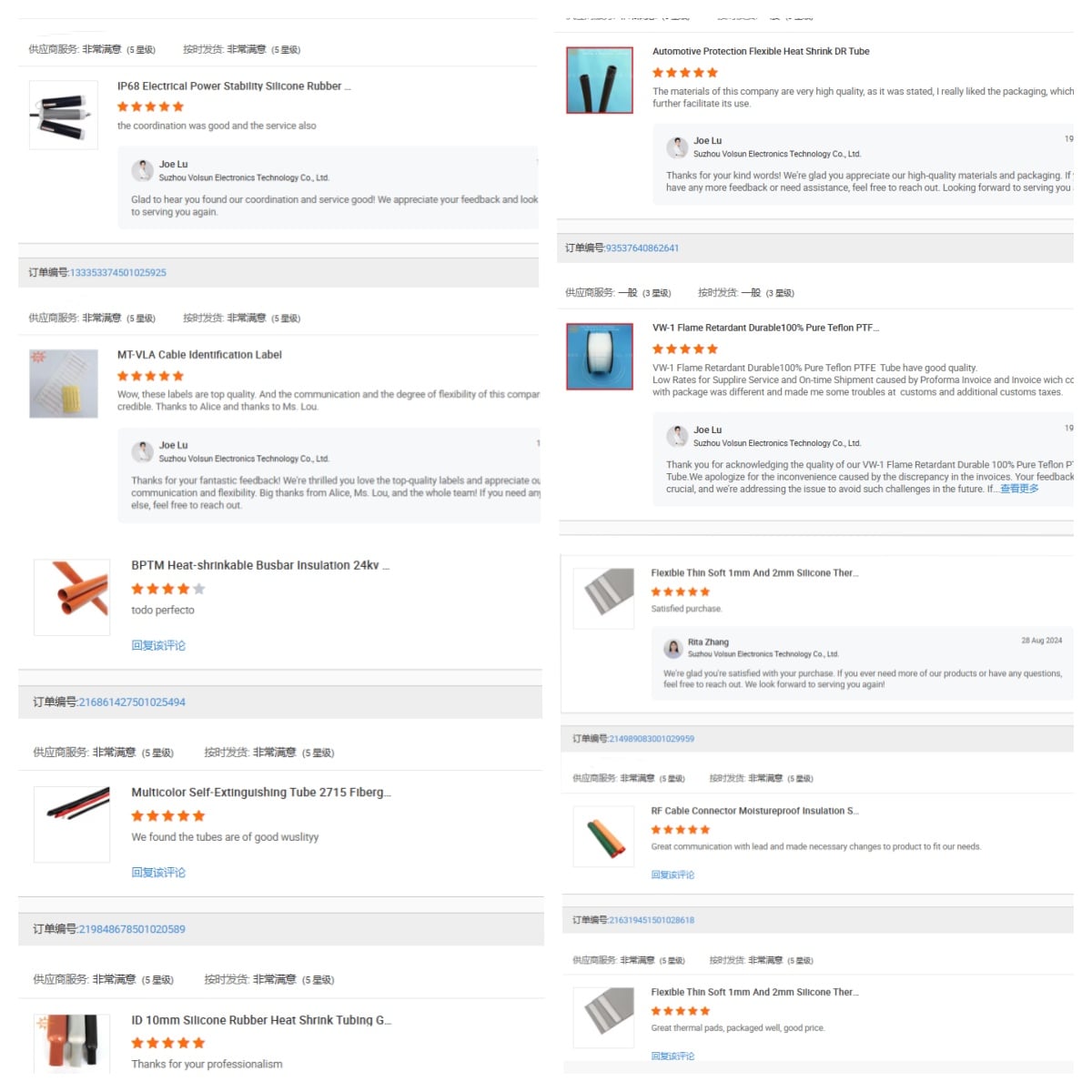

Buyer's feedback
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-35
Product packaging
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-36

Packing & Loading-1

product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-37

Packing & Loading-2

Abroad Exhibition
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-38
Las Vagas AAPEX
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-39
Moscow Expo
product processor thermal pad 3m 3ks thermal pad 8wmk 60 x 90 thermal pad 100x100mm 05mm 1mm 15mm 2mm highly e-40
Hannover Messe
FAQ
Q 1: Can you provide customized service
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

Q 2. What is the normal lead time for product orders
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

Q 3. What is your standard packaging
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Q 4. Can you tell us the monthly production capacity of your products
A: It depends on the model, we produce more than 1500 tons of rubber materials per month

Q 5. What kind of certificates do you have
A1: We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified
A2: We have various rubber compounds approved by UL, ROHS and REACH


Q6: How to check the quality of bulk order
A1: We provide pre-production samples to all customers before mass production if needed
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc


Q7. How long is the payment term
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal
