High Voltage Big Size Busbar Heat Shrink Sleeve Heat Shrink Tube for Electrical Insulation

Introducing, the High Voltage Big Size Busbar Heat Shrink Sleeve Heat Shrink Tube from Volsun - the perfect solution for electrical insulation needs. This heat shrink sleeve provides ultimate protection for your electrical components against the effects of high temperatures, moisture, and harsh chemical environments.

The tube is made from high-quality polyolefin material, which guarantees long-lasting functionality and durability. The sleeve comes in a big size, which allows it to fit snugly around large-sized busbars. The high voltage capability of this product makes it the perfect choice for use in industries such as power plants, oil refineries, and chemical processing plants.

The Volsun’s High Voltage Big Size Busbar Heat Shrink Sleeve Heat Shrink Tube offers exceptional insulating properties. It meets the safety standards set by major organizations like UL, CSA, and RoHS. This reassures you of the reliability of the product and its ability to keep your electrical equipment safe.

The Volsun’s Heat Shrink Sleeve is designed to withstand high temperatures and can accommodate continuous temperature ratings of up to 125°C. The sleeve is also flame retardant, repelling any risk of fire damage. Moreover, it is resistant to abrasion and punctures, which ensures that components remain protected under harsh conditions.

Installation of the Volsun’s Heat Shrink Sleeve is a breeze. The tube comes in a pre-cut size, making it easy to slip onto busbars. The heat shrink tube is then heated, causing it to shrink and fit tightly around the busbars, sealing it and protecting the electrical components.

Finally, the Volsun’s High Voltage Big Size Busbar Heat Shrink Sleeve Heat Shrink Tube comes with an impressive manufacturer's warranty. This assures you of excellent customer service and satisfaction guarantee

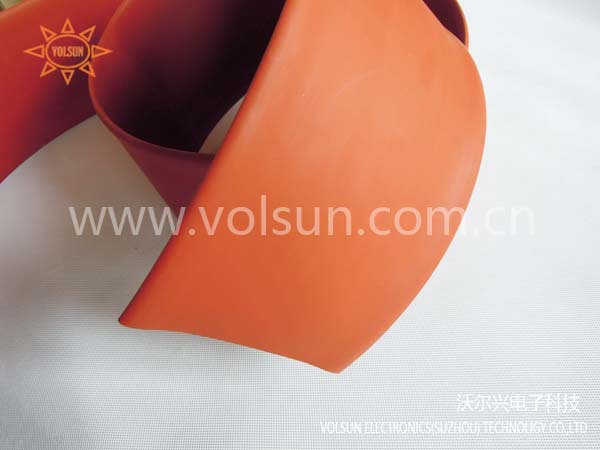

Heat shrink plastic copper busbar protective sleeve/busbar tube

Description

MPRS-HV Heat shrink plastic copper busbar protective sleeve/busbar tube, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance.  Heat shrink plastic copper busbar protective sleeve/busbar tube  typical applications include insulation of electrical bus bar rated up to 36KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc

Contact us for free sample

Features

Shrink ratio: 2:1
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant

Min. shrink temperature: ≥84°C
Min. full recovery temperature: ≥120 °C
Continuous operating temperature: -55~125 °C
RoHS compliant
Standard Colors :Black, White, Red, Yellow, Green, Blue. More colors are available upon request

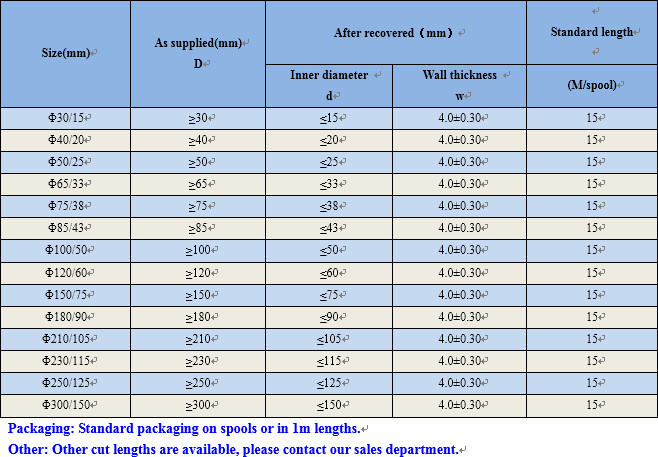

Technical Data

Structure

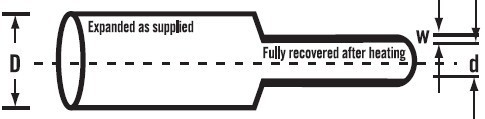

Dimension
