1.Operating temperature:-60°C~200°C
2.Waterproof and Sealing Class: IP68
3.Shrink Ratio :5:1
4.Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5.Simple installation
6.Standard color:Black,white,grey,etc
Description
Product Description

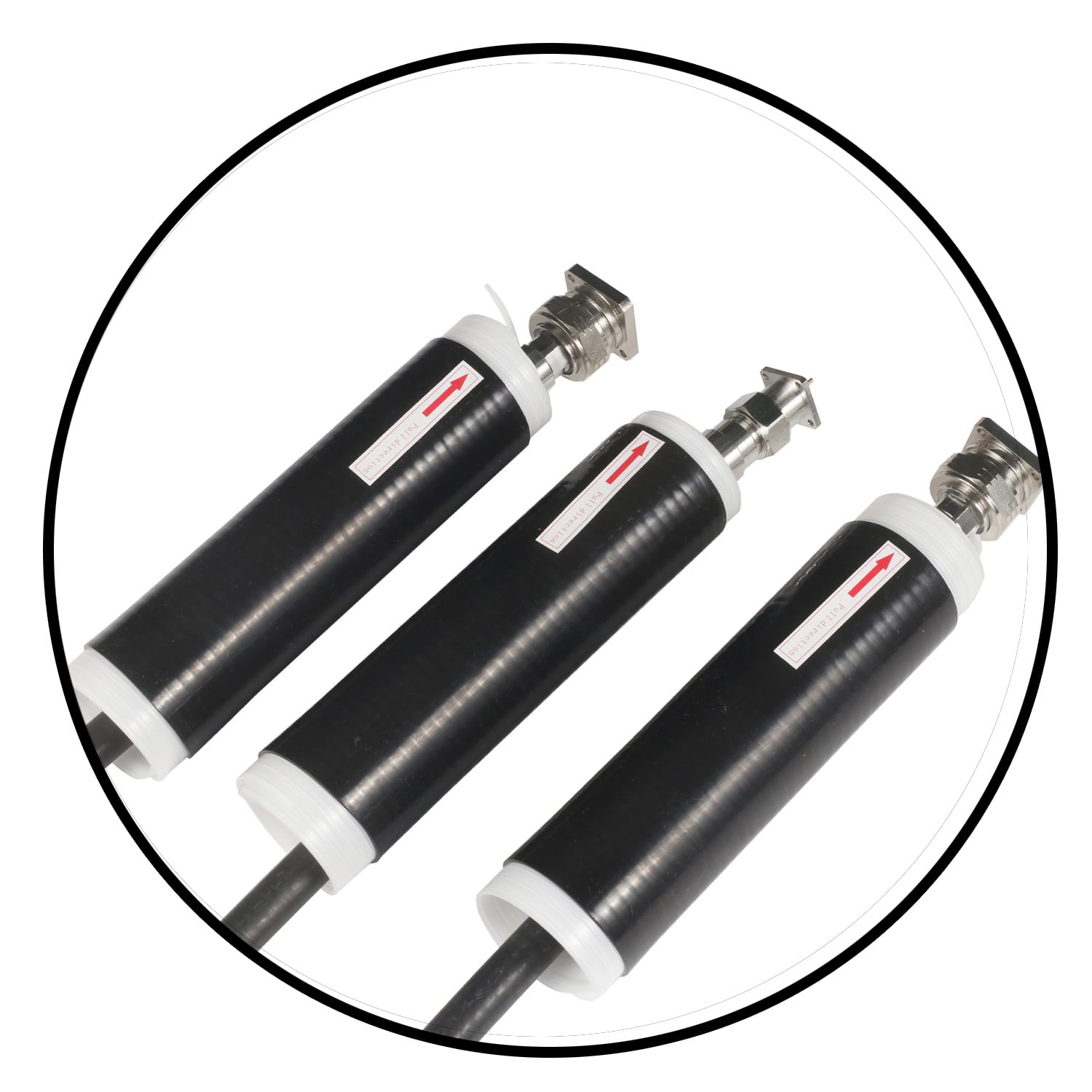

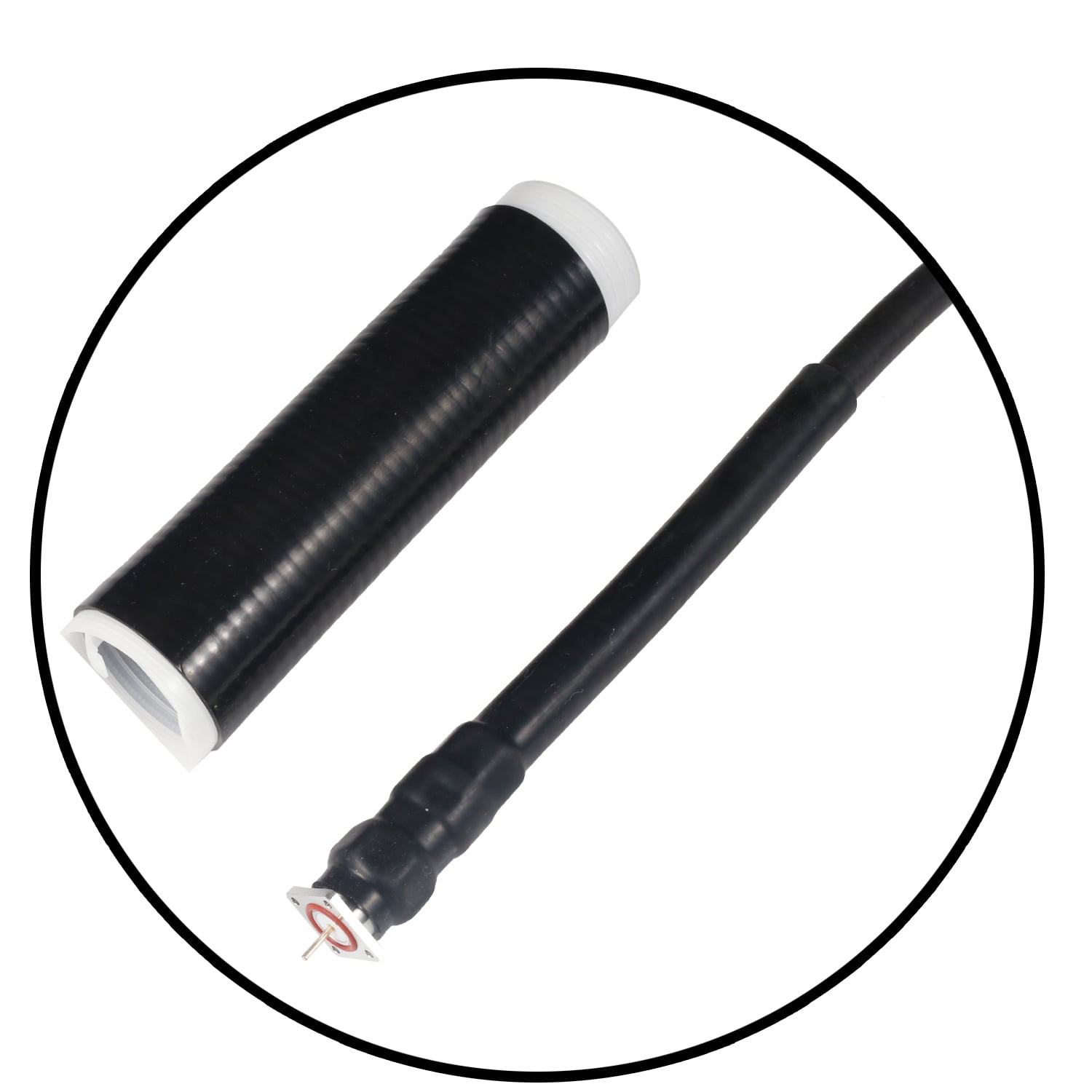

cable accessories RFS cable cold shrink tube IP68
RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections.
Features:
Technical Performance
Properties |
Typical Data |
Test Method |
Shore Hardness |
40±5A |
GB/T 531-2008 |
Tensile Strength |
≥9.0MPa |
GB/T 528-2009 |
100% Stress at Definite Elongation |
≤1.2MPa |
GB/T 528-2009 |
200% Stress at Definite Elongation |
≤2.0MPa |
GB/T 528-2009 |
Elongation at Break |
＞800% |
GB/T 528-2009 |
Tear Strength |
≥35kN/m |
GB/T 529-2008 |
Dimensions
Size |
Inner Diameter (mm) |
Min Cable Outer Diameter (mm) |
Max Cable Outer Diameter (mm) |
Full Recovered Length (mm) |
VS15-2 |
15 |
5 |
13 |
50 |
VS28-6 |
28 |
7.0 |
25.0 |
150 |
VS40-5.5 |
40 |
11.0 |
33.0 |
140 |
VS45-7 |
45 |
13.5 |
39.0 |
178 |
VS60-9 |
60 |
20.5 |
51.0 |
230 |
VS70-8 |
70 |
25.0 |
63.0 |
203 |
Size is available to customize
Company Show
Suzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in
insulation, sealing & protection solutions for over 19 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification
such as IATF16949, ISO9001 etc.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know
enterprises in communication,Automobile, Power industry etc.
insulation, sealing & protection solutions for over 19 years.
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification
such as IATF16949, ISO9001 etc.
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know
enterprises in communication,Automobile, Power industry etc.
Certifications
Abroad Exhibition
Las Vagas AAPEX
Moscow Expo
Hannover Messe
Packing & Delivery
Trade terms |
FOB, EXW, CIF, DDU, DDP, CFR |
Payment terms |
T/T, L/C, Negotiable |
Supply capability |
1,000,000 pieces per month |
Lead time |
usually 2-3 working days |
Shipment |
Express, Air, Sea |
Port |
Shanghai, Ningbo, Shenzhen |
Sample availability |
Yes |
Sample time |
usually 1-2 days |
Packaging |
Normal: Plastic bag & Carton & Pallet Special: Customized packing |
