Cold shrink silicone tubing cold shrinkable tube cold shrink tube for 4.3-10 connector

Volsun

The Cold Shrink Silicone Tubing is a versatile and easy-to-use solution for sealing and protecting 4.3-10 connectors. This cold shrinkable tube is designed for quick and effortless installation without the need for any additional tools or heat sources.

The Volsun Cold Shrink Silicone Tubing is made from high-quality silicone material that is highly flexible and durable. It offers excellent sealing properties, ensuring reliable protection against the ingress of moisture, dust, and other contaminants that could damage your equipment.

One of the key benefits of the Volsun Cold Shrink Silicone Tubing is its easy installation process. The tubing is pre-stretched and placed onto a removable core, which allows for a quick and effortless installation process. Simply slide the tubing over the connector and then remove the core to allow the tubing to shrink onto the connector, providing a tight and secure seal.

This cold shrinkable tube is ideal for a variety of applications, including outdoor telecommunications, wireless networking, and broadcast systems, where reliable and long-lasting protection is crucial. With a temperature range of -50°C to 200°C, this tubing can withstand extreme weather conditions, making it a suitable choice for a wide variety of environments.

The Volsun Cold Shrink Silicone Tubing is also highly resistant to UV radiation, ozone, and other environmental factors, making it an excellent choice for outdoor use. This tubing is available in a range of sizes to suit various connector types, ensuring that you can find the perfect fit for your specific needs.

Product Overview

 cable accessories RFS cable cold shrink tube IP68

RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections.

Features:

1. Operating temperature: -60°C~200°C

2. Waterproof and Sealing Class: IP68

3. Shrink Ratio: 5: 1

4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance

5. Simple installation

6. Standard color: Black, white, grey, etc

PRODUCT SPECIFICATIONS

Properties	Typical Data	Test Method
Shore Hardness	40±5A	GB/T 531-2008
Tensile Strength	≥9.0MPa	GB/T 528-2009
100% Stress at Definite Elongation	≤1.2MPa	GB/T 528-2009
200% Stress at Definite Elongation	≤2.0MPa	GB/T 528-2009
Elongation at Break	＞800%	GB/T 528-2009
Tear Strength	≥35kN/m	GB/T 529-2008

Dimensions

Size	Inner Diameter (mm)	Min Cable Outer Diameter (mm)	Max Cable Outer Diameter (mm)	Full Recovered Length (mm)
VS15-2	15	5	13	50
VS28-6	28	7.0	25.0	150
VS40-5.5	40	11.0	33.0	140
VS45-7	45	13.5	39.0	178
VS60-9	60	20.5	51.0	230
VS70-8	70	25.0	63.0	203

Size is available to customize

Company Show

Suzhou Volsun Electronics Technology Co., Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 17 years.

Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications

Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication, Automobile, Power industry etc

Packing & Delivery

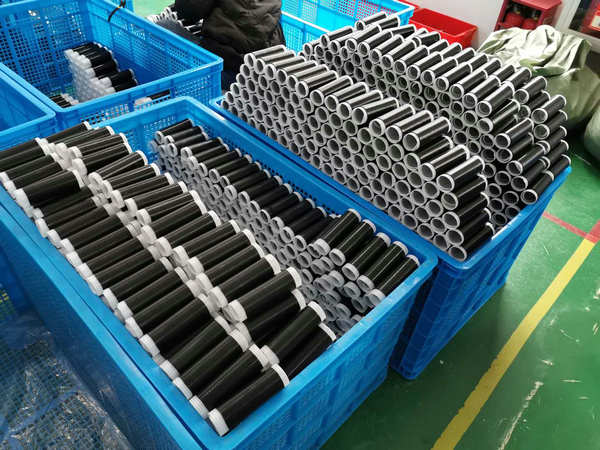

Production View

Production View

Delivery

Trade terms	FOB, EXW, CIF, DDU, DDP, CFR
Payment terms	T/T, L/C, Negotiable
MOQ	1
Supply capability	1, 000, 000 pieces per month
Lead time	usually 2-3 working days
Shipment	Express, Air, Sea
Port	Shanghai, Ningbo, Shenzhen
Sample availability	Yes
Sample time	usually 1-2 days
Packaging	Normal: Plastic bag & Carton & Pallet Special: Customized packing

Certificate

Abroad Exhibition

Las Vagas AAPEX

Moscow Expo

Hannover Messe
